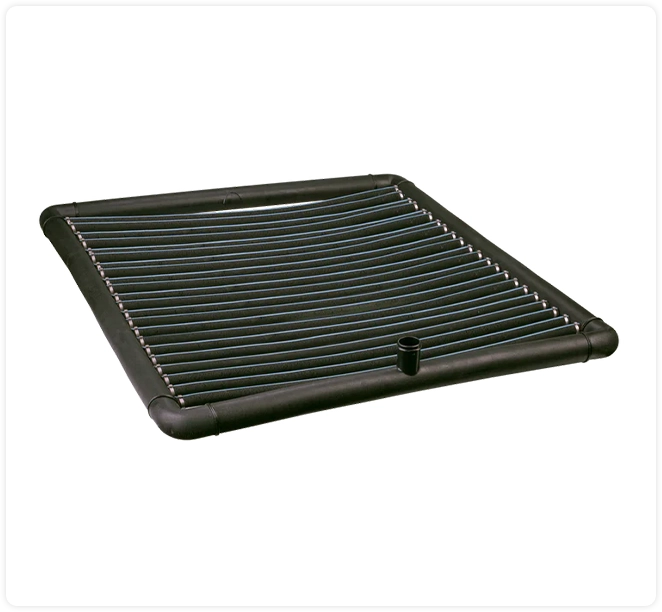

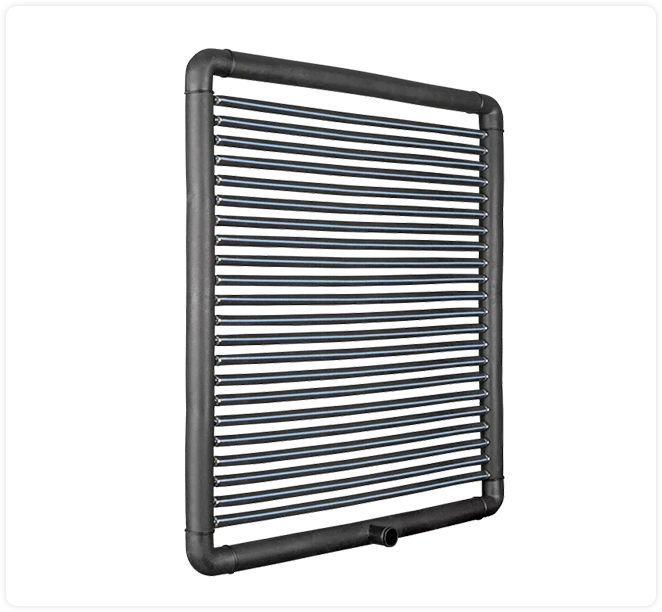

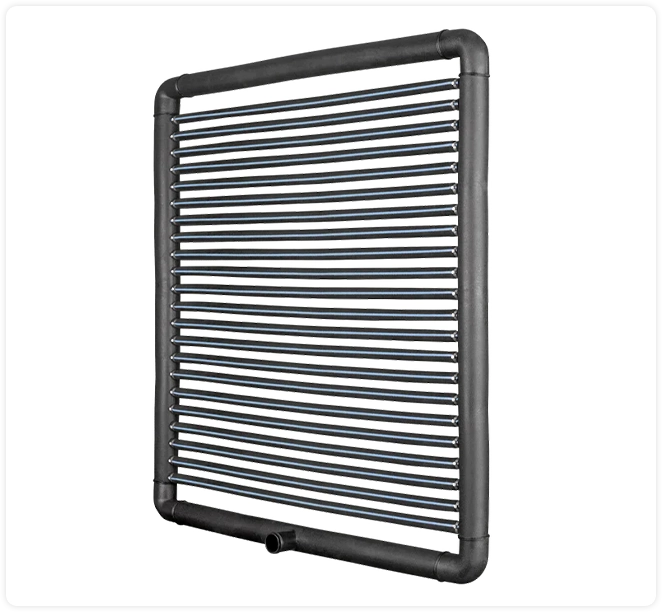

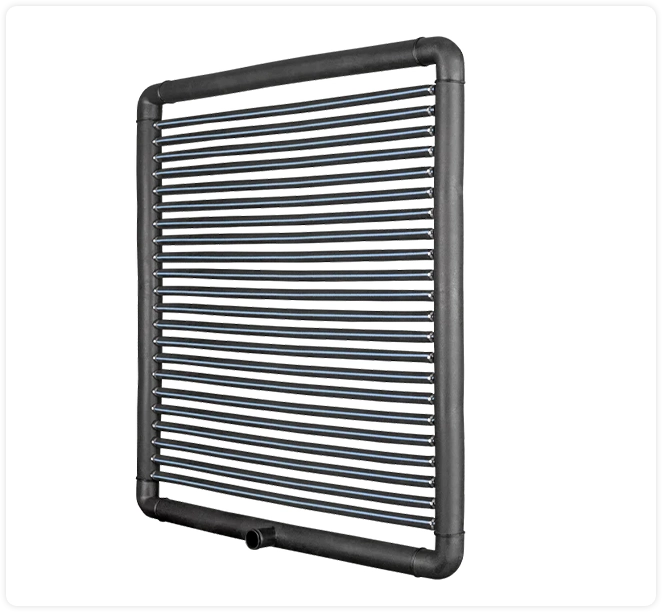

AERO-TUBE® GRID

The most convenient way to utilise Aero-Tube® Technology


The Aero-Tube® Grid is engineered to use Aero-Tube® aeration tubing optimally. It includes an injection-moulded HDPE plastic frame and 20.1 meters (66 feet) of Aero-Tube®, and aeration hose attached with stainless steel clamps. Simply connect the Aero-Tube® Grid to an air supply and immediately experience its high efficiency—infusing up to 300 m3/hr of air into water— as well as the low costs associated with Aero-Tube® technology. The Aero-Tube® Grid can be used in a wide variety of applications, from aquaculture to wastewater treatment.

Specifications

  • Injection-moulded HDPE plastic frame
  • Aero-Tube® aeration tubing
  • Rubber/polyethylene diffuser hose
  • Thick, porous walls
  • Highly durable and flexible, will not break if stepped on
  • Anti-algal and antimicrobial
  • Stainless steel clamps
Metric English
Length 1.2m 3.9 ft
Width 1.05 m 3.44 ft
Length of Aero-Tube 66 ft
Recommended Air Pressure 44m3/hr 1544 ft3/hr
Air Flow Resistance <7kPa <7kPa
